Quadro de montagem de telhado de metal solar

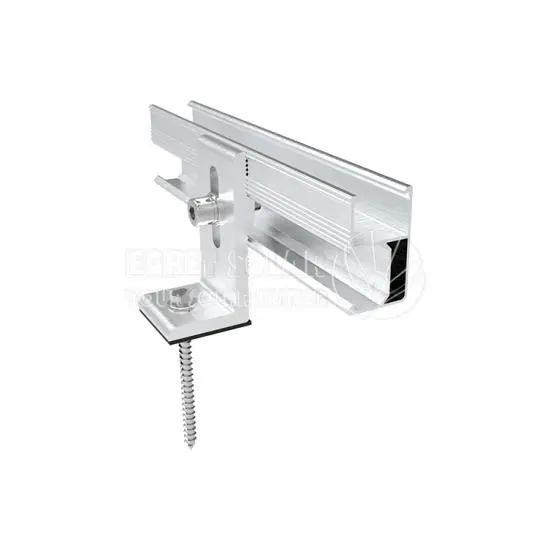

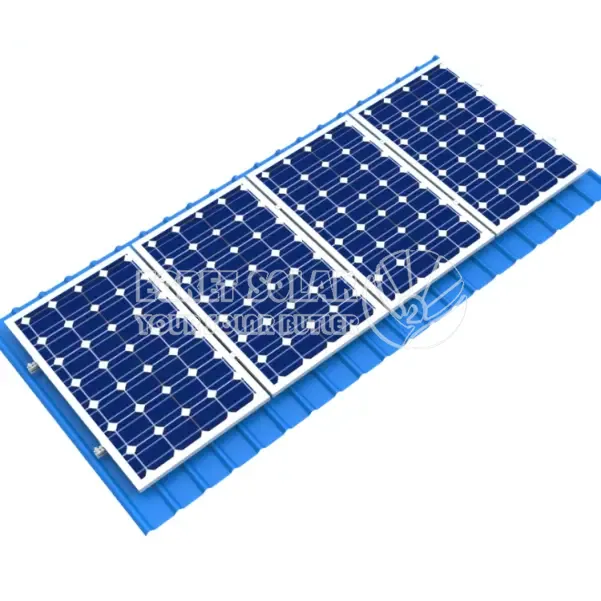

Egret Solar Metal Roof Mounting Frame is suitable for roofing with trapezoidal sheet metal. L Feet is available for foot option, making installation more fast, competitive and reliable.Solar stainless steel L foot is one kind of universal solar mounting components for metal roofing. There is two holes on L feet. One hole on the bottom is used to insert the wood screws to fasten on the metal roof.While the another hole on the arm of L feet is to equip with bolts and nuts,which tighten the rails and construct the whole system.Egret Solar Metal Roof Mounting Frame can be protected from leakage damage,via adding EPDM rubber on the bottom of L feet.

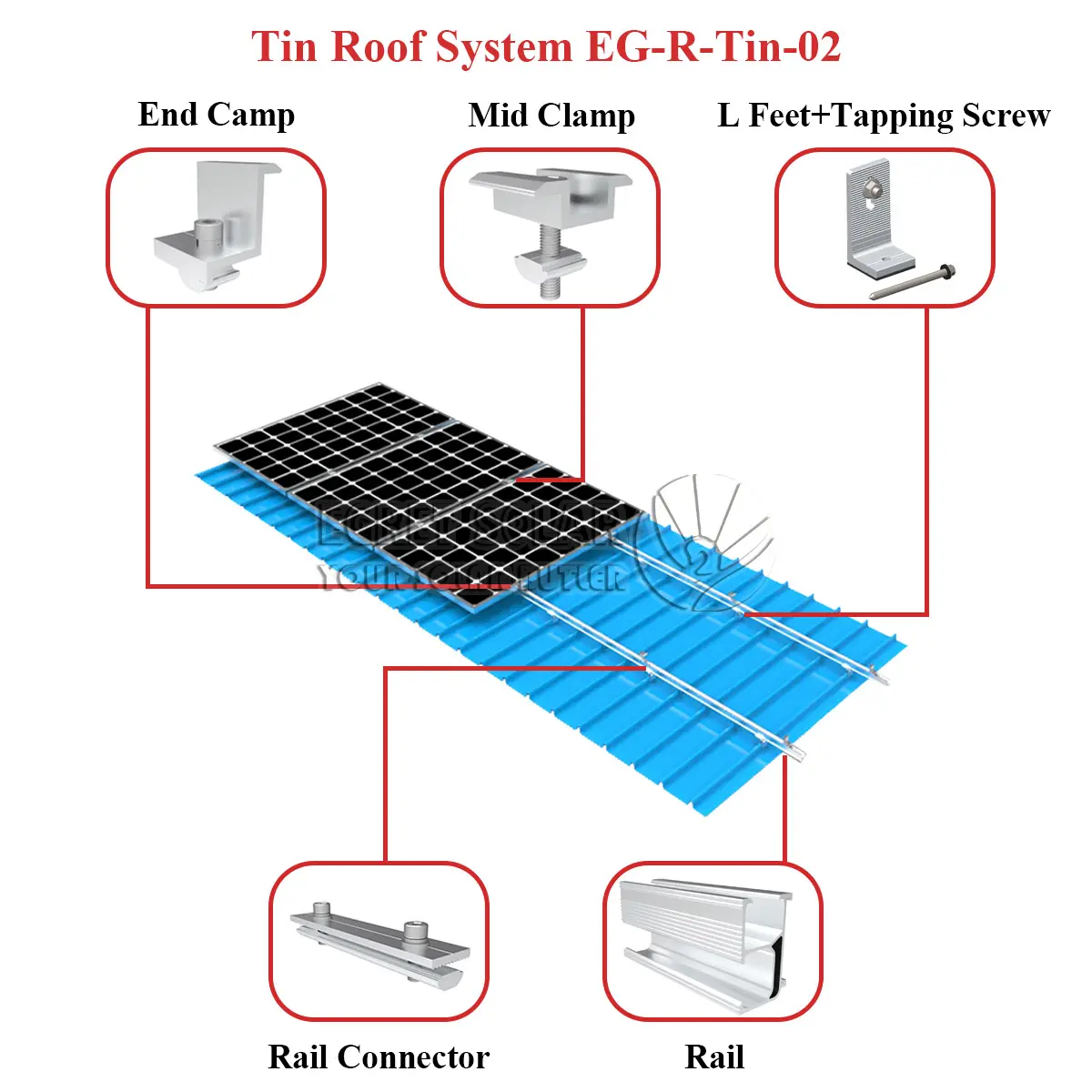

Except for L feet , the frame include:

● Rail

● Rail Connector

● Mid &End Clamp

● Grounding Washer

● Grounding Lug

The Solar Metal Roof Mounting Frame is mainly made up of 304 stainless steel & aluminum. As a superior material,it is resistant to corrosion & extreme temperatures.

Designed with super fast installation in mind,the majority of accessories are pre-assembled an efficient installation reducing time & cost. Brief installation guide for Egret Solar Tin Roof Kit,as belows

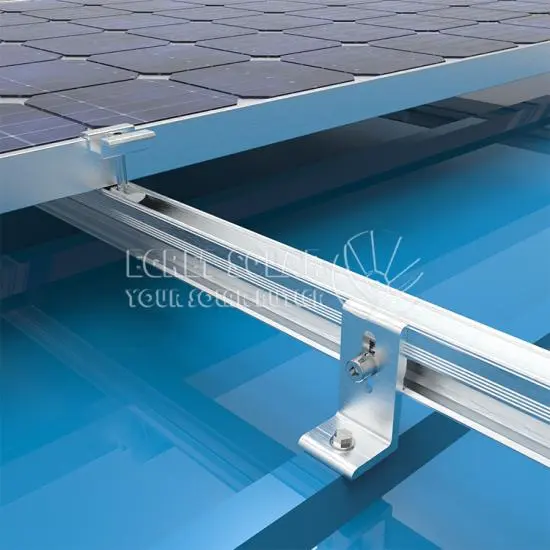

Step 1.Mount L feet on metal roof with self-tapping screws

Step 2.Rail Installation. If needed ,connect multiple rails via rail splices.

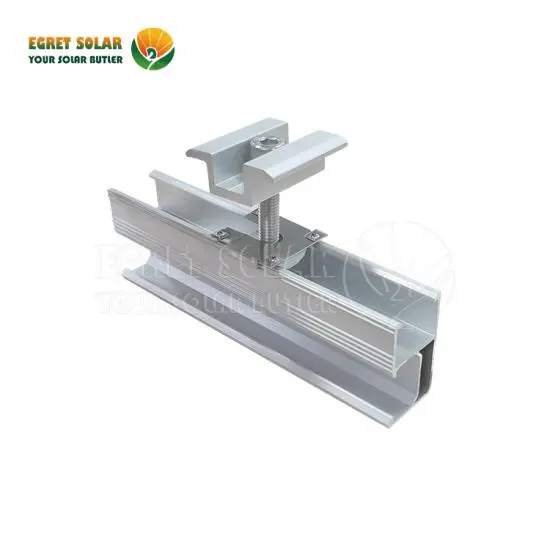

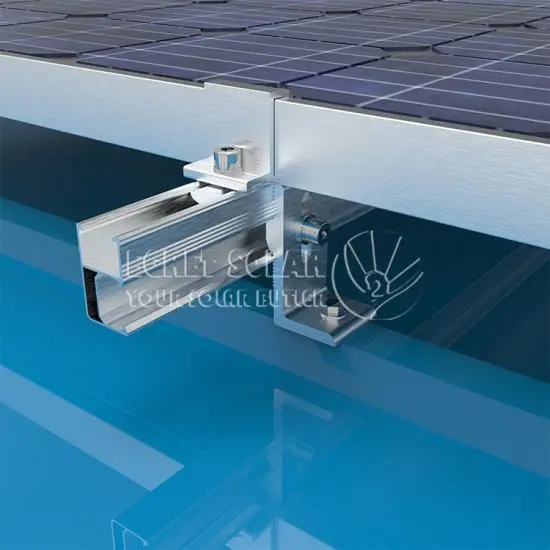

Step 3.Place the PV panel on the rail .Slip the end clamp and mid clamp to stick on solar panels tightly

Step 4.Put the grounding clips under mid clamp .Then the ground lugs connect the rails to the ground by the copper wire .

PRODUCT PARAMETERS

	Product name	Solar Metal Roof Mounting Frame
	Color	Black Color, Natural Color
	Installation Site	Roof
	Wind Load	0-60m/s
	Snow load	1.2KN/M²
	Warranty	12 Years
	Service Lift	25 Years
	Material	AL6605-T5 &SUS304

PRODUCT SHOW

OUR ADVANTAGE

● Compatible with different types of solar modules.

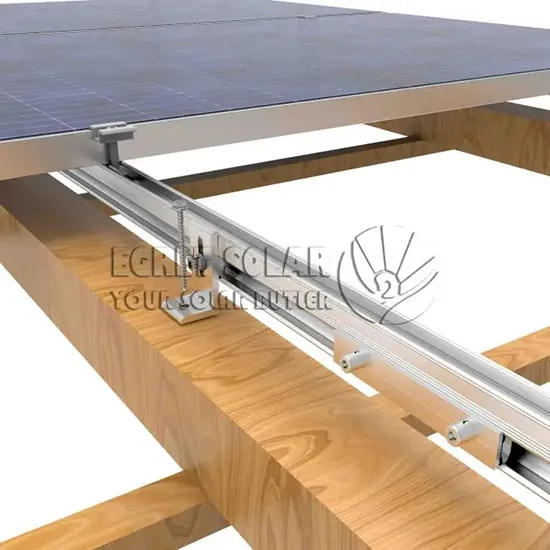

● Simple and quick fixation to wooden trusses or metal purlins.

● Leak-proof fasteners.

● Supporting high wind and heavy snow loads.

● Pre-assembled components for quick and easy installation.

● Vertical and horizontal mounting solutions available.

OUR FAQ

Q1: Can I have a free sample of Solar Metal Roof Mounting Frame?

Yes,one set sample is for free, but you need to cover the courier freight.

Q2: What about the lead time?

Sample needs 2-3 days.While bulk order needs 7~15 days ,depands on order quantity .

Q3 : Do you have any MOQ limit,for Solar Tin Roof System?

Egret Solar don't have a request on MOQ for our current products, 1pc for sample checking is available. But for ODM and OEM products, we have a request on MOQ.

Q4 : How do you ship the goods and how long does it take to arrive?

For sample package, we mainly ship by DHL or FedEx. It will take 3-5 days to arrive. While shipping by sea for big orders,will take 7~30 days to arrive, depends on distance.

Q5 : How about your after-service?

Egret solar will be responsible for any complaints from our customers (response immediately when we received it, within 3 hours) and would like to help our customers to solve any problems what they meet.
